Prop and motor selection

For my newest plane build I will be using a motor I bought some time ago, the TS-Motor AS2317 KV1400.

T-Motor-AS2317-1400KV-Fixed-Wing-Motor-HobbyRC-UK

I use eCalc - propCalc to calculate some thrust values for three types of prop I already have in my box. All are using a 3S battery and a 40A ESC as I have these sat in my box also.

Prop 1 : Graupner 8 x 6 x 3

T-Motor-AS2317-1400-Long-Shaft_Graupner-E-Prop-8-x-6-3S_propCalc

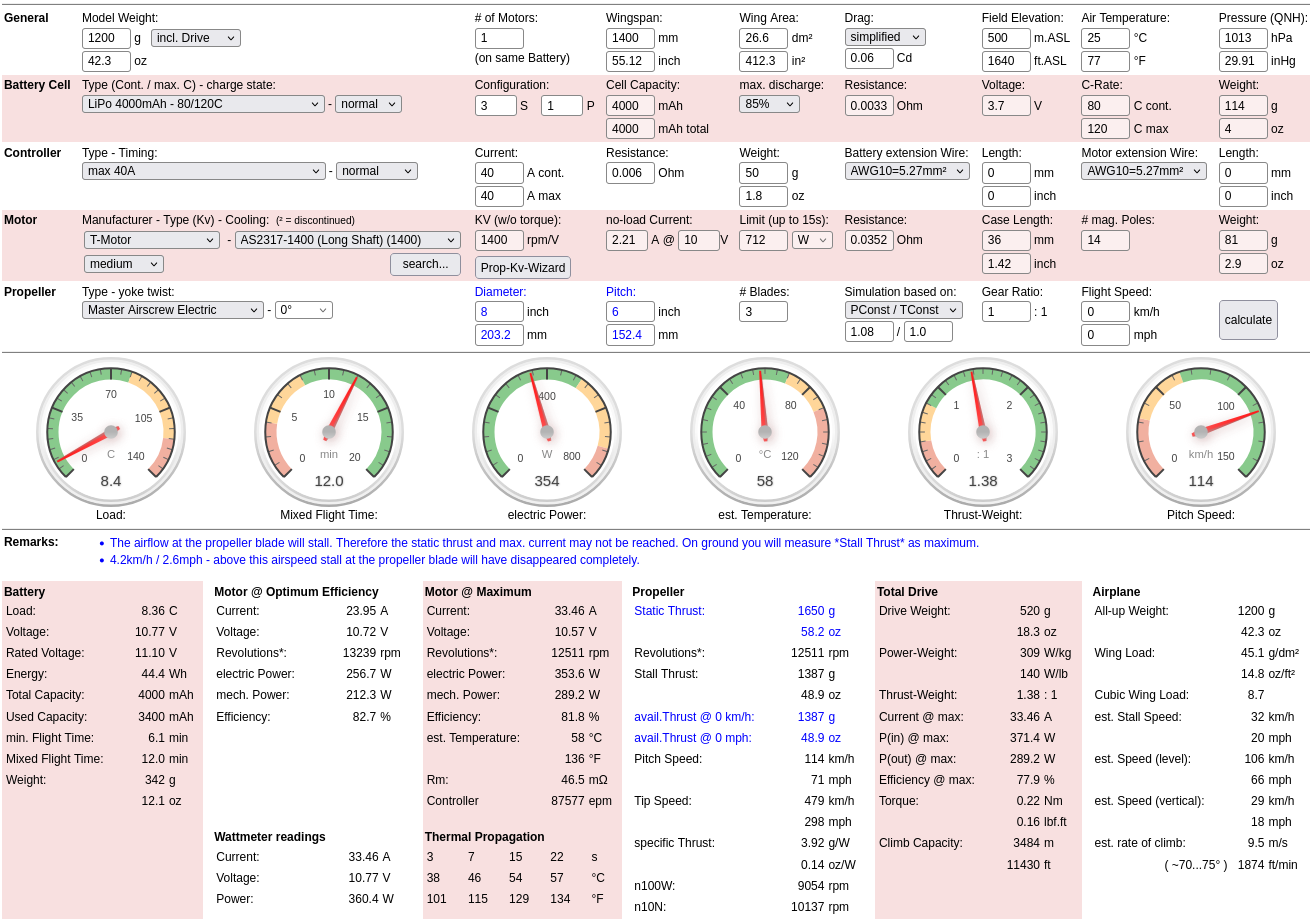

Prop 2 : Master Airscrew 8 x 6 x 3

T-Motor-AS2317-1400-Long-Shaft_Master-Airscrew-Electric-8-x-6-3S_propCalc

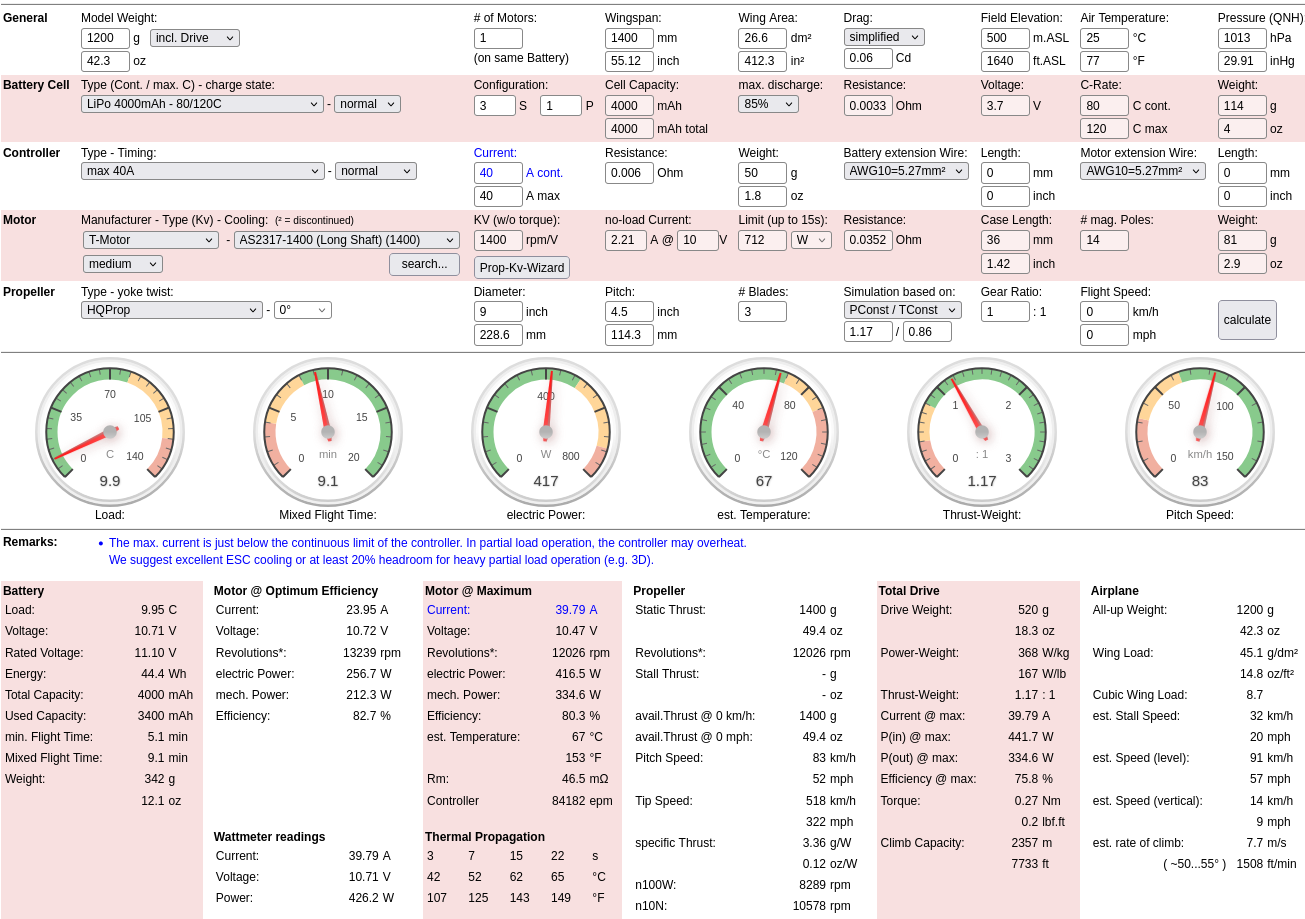

Prop 3 : HQProp 9 x 4.5 x 3

T-Motor-AS2317-1400-Long-Shaft_HQProp-9-x-4-5-3S_propCalc

Prop 4 : HQProp 9 x 5 x 2

T-Motor-AS2317-1400-Long-Shaft_HQProp-9-x-5-3S_propCalc
